PATCHBAYS
Features and Benefits
? Combines 16 midsize video jacks
and 48 TT bantam audio jacks.
? Video jacks are rated from DC to
3.0 GHZ.
? All audio jacks are nickel-plated with
steel frames and gold-plated cross-
bar switching contacts.
? Rugged, attractive anodized aluminum
frame for increased reliability.
? Large designation strips for easy
MBPK Video/Audio Patchbay Series
43
patch point identification.
MBPK175T
? Audio jacks rated at 30,000 cycles.
Video Jack Specifications
See page 39 for details
The MBPK Series combines our popular MVJ midsize video jacks with our
Audio Jack Specifications
See page 69 for details
Materials
Frame: Aluminum, black anodized
standard nickel-plated, steel frame audio jacks. This patchbay combines 16
midsize video jacks with 48 TT bantam audio jacks. Perfect for applications
where a full video and audio patchbay are unnecessary. The video jacks are rated
up to 3.0GHz, and the audio jacks meet 30,000 cycles. The audio jacks have T,
R, S, TN, and RN terminals, and feature gold-plated contacts and flared solder
terminals.

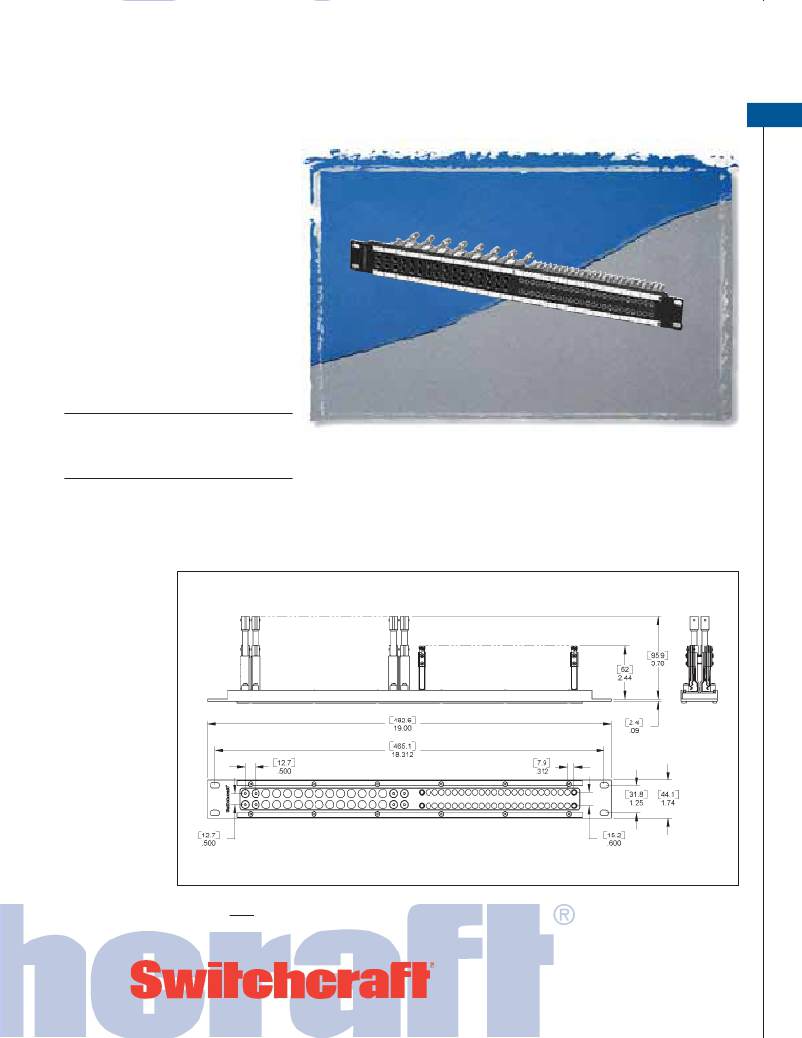

DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
